Gel-Box
Gel (AD Series) or
Vertec™ (APV Series)

Gel-Pak’s Gel-Box (AD, APV Series) is comprised of a plastic hinged box with our proprietary Gel or non-silicone Vertec elastomer applied directly to the bottom. These versatile “pocketless” carriers immobilize devices during shipping, handling and processing.

Ideal for:

Devices where direct contact with the top surface or edges should be avoided.
Devices that are handled with tweezers or by hand.
Multiple device sizes (no pockets) in same Gel-Box.
Handling small components or large assembled modules.

For your specific device sizes refer to Die Calculator Program for determining the number of devices per box type.

Request a Quote Request a Sample

AD-22C
AD-23T
AD-22CAS

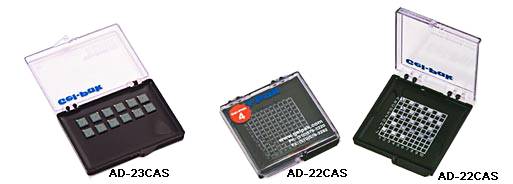

These are samples of Gel-Box products. They are available in a variety of sizes and constructions. Please refer to Gel-Box Standard Part Number Catalogs for options.

Gel-Box Sizes	Ranges from 1”x 1” up to 7” x 5”
Elastomer	Traditional Gel (AD Series) or Silicone-Free Vertec® (APV Series)
Box Configurations	Available in variety of box top/bottom material configurations
Box Materials	Transparent, Conductive Black, Transparent Antistatic
Prints/Grids	Wide assortment of prints, grids available
Traditional Gel Tack Levels
Silicone-Free Vertec Tack Levels

Gel-Box (AD,APV Series) are ideal for immobilizing a variety of components during shipping and handling including:

Optics
Semiconductor devices
Medical components
AFM tips

For your specific device sizes refer to Die Calculator Program for determining the number of devices per box type.

TD-002 WF/PF Film Outgassing Contact Factory

TD-004 Gel Composition (FT-IR) Contact Factory

TD-005 GEL Ionic Properties Contact Factory

TD-006 RoHS Test Report Download

TD-007 Gel Optical Properties Download

TD-012 GEL Long-Term Aging Study Download

TD-017 ESD Properties Download

TD-018 Box/Tray Material Temperature Properties Contact Factory

TD-019 Internal Clearances and Useable Areas Download

TD-029 REACH Test Report Download

TD-039 Vertec Outgassing Contact Factory

TD-041 Biocompatibility test (Cytotoxicity) Download

TD-047 Vertec TPE Product SDS Contact Factory

TD-049 Standard Gel Products SDS Contact Factory

TD-051 Vertec_vs_Silicone FTIR Contact Factory

TD-062 Vertec_PU_FTIR Contact Factory

TD-063 Vertec Polyurethane Elastomer SDS Contact Factory

TD-068 Vertec EH07 Outgassing Contact Factory

TD-070 Vertec FM71 Biocompatibility Download

TD-071 Vertec PolyU Biocompatibility Download

TD-085 APV Gel-Box Datasheet Download

TD-087 Vertec EH02 & EH04 Outgassing Contact Factory

TD-088 AD AV APV Gel-Box Comparison Download

TD-095 Elastomer Tack Chart Download

TD-098 Vertec FK79 TPE Biocompatibility Download

TD-102 TD-102B GP TPU FILM SDS Contact Factory

TD-116 Vertec-PU Long-Term Aging Study Download

TD-132 Vertec FP64 Long Term Aging Study Download

Gel-Box Part Number Catalog

Gel-Box AD Series with Traditional Gel-Elastomer

Xn = Gel Tack Level (XT, X0, X4, X5, X6, X8)
Conductive (C) = Black
Antistatic (AS) = Tinted/Translucent
Transparent (T) = Clear Styrene

Part Number	Description	Tack Levels Available
AD-11C-00-Xn	1" x 1" x 0.5" Conductive Gel-Box with Traditional Gel Elastomer	XT, X0, X4, X5, X6, X8
AD-11T-00-Xn	1" x 1" x 0.25" Transparent Gel-Box with Traditional Gel Elastomer	XT, X0, X4, X5, X6, X8
AD-22AS-00-Xn	2" x 2" x 0.25" Antistatic Gel-Box with Traditional Gel Elastomer	XT, X0, X4, X5, X6, X8
AD-22CAS-00-Xn	2" x 2" x 0.25" Conductive Base/Antistatic Lid Gel-Box with Traditional Gel Elastomer	XT, X0, X4, X5, X6, X8
AD-22CT-00-Xn	2" x 2" x 0.25" Conductive Base/Transparent Lid Gel-Box	XT, X0, X4, X5, X6, X8
AD-22C-00-Xn	2" x 2" x 0.25" Conductive Gel-Box with Traditional Gel Elastomer	XT, X0, X4, X5, X6, X8
AD-22T-00-Xn	2" x 2" x 0.25" Transparent Gel-Box with Traditional Gel Elastomer	XT, X0, X4, X5, X6, X8
AD-610AS-00-Xn	2" x 2" x 0.5" Antistatic Gel-Box with Traditional Gel Elastomer	XT, X0, X4, X5, X6, X8
AD-780C-00-Xn	2.875" x 2" x 0.75" Conductive Gel-Box with Traditional Gel Elastomer	XT, X0, X4, X5, X6, X8
AD-750AS-00-Xn	2.875" x 2" x 1" Antistatic Gel-Box	XT, X0, X4, X5, X6, X8
AD-23CAS-00-Xn	3" x 2" x 0.375" Conductive Base/Antistatic Lid Gel-Box with Traditional Gel Elastomer	XT, X0, X4, X5, X6, X8
AD-23CT-00-Xn	3" x 2" x 0.375" Conductive Base/Transparent Lid Gel-Box	XT, X0, X4, X5, X6, X8
AD-23C-00-Xn	3" x 2" x 0.375" Conductive Gel-Box with Traditional Gel Elastomer	XT, X0, X4, X5, X6, X8
AD-23T-00-Xn	3" x 2" x 0.375" Transparent Gel-Box with Traditional Gel Elastomer	XT, X0, X4, X5, X6, X8
AD-803CAS-00-Xn	3.5" x 2.5" x 0.5" Conductive Base/Antistatic Lid Gel-Box with Traditional Gel Elastomer	XT, X0, X4, X5, X6, X8
AD-1135CAS-00-Xn	4.5" x 3.5" x 0.5" Conductive Base/Antistatic Lid Gel-Box	XT, X0, X4, X5, X6, X8
AD-1135C-00-Xn	4.5" x 3.5" x 0.5" Conductive Gel-Box with Traditional Gel Elastomer	XT, X0, X4, X5, X6, X8
AD-1135T-00-Xn	4.5" x 3.5" x 0.5" Transparent Gel-Box with Traditional Gel Elastomer	XT, X0, X4, X5, X6, X8
AD-1155CAS-00-Xn	4.5" x 3.5" x 0.875" Conductive Base/Antistatic Lid Gel-Box	XT, X0, X4, X5, X6, X8
AD-1155C-00-Xn	4.5" x 3.5" x 0.875" Conductive Gel-Box with Traditional Gel Elastomer	XT, X0, X4, X5, X6, X8
AD-1155T-00-Xn	4.5" x 3.5" x 0.875" Transparent Gel-Box	XT, X0, X4, X5, X6, X8
AD-2025C-00-Xn	6" x 4" x 0.5" Conductive Gel-Box with Traditional Gel Elastomer	XT, X0, X4, X5, X6, X8
AD-2025T-00-Xn	6" x 4" x 0.5" Transparent Gel-Box with Traditional Gel Elastomer	XT, X0, X4, X5, X6, X8
AD-2125BASAS-00-Xn	7" x 5" x 1" Conductive Base/Antistatic Lid Gel-Box with Traditional Gel Elastomer	XT, X0, X4, X5, X6, X8
AD-2125C-00-Xn	7" x 5" x 1" Conductive Gel-Box	XT, X0, X4, X5, X6, X8
AD-2125T-00-Xn	7" x 5" x 1" Clear Gel-Box with Traditional Gel Elastomer	XT, X0, X4, X5, X6, X8
AD-2090C-00-Xn	7.75" x 3.5" x 1" Conductive Gel-Box with Traditional Gel Elastomer	XT, X0, X4, X5, X6, X8
AD-1980T-00-Xn	9.937" x 3.5" x 0.625" Transparent Gel-Box with Traditional Gel Elastomer	XT, X0, X4, X5, X6, X8

Gel-Box APV Series with Non-Silicone Static Dissipative Elastomer

EHn = Gel Tack Level (EH01,EH02, EH04, EH07)
Conductive (C) = Black
Antistatic (AS) = Tinted/Translucent
Transparent (T) = Clear Styrene

Part Number	Description	Tack Levels Available
APV-11C-00-EHn	1" x 1" x 0.5" Conductive Gel-Box with Non-Silicone Static Dissipative Elastomer	EH01,EH02, EH04, EH07
APV-11T-00-EHn	1" x 1" x 0.25" Transparent Gel-Box with Non-Silicone Static Dissipative Elastomer	EH01,EH02, EH04, EH07
APV-22AS-00-EHn	2" x 2" x 0.25" Antistatic Gel-Box with Non-Silicone Static Dissipative Elastomer	EH01,EH02, EH04, EH07
APV-22CAS-00-EHn	2" x 2" x 0.25" Conductive Base/Antistatic Lid Gel-Box with Non-Silicone Static Dissipative Elastomer	EH01,EH02, EH04, EH07
APV-22CT-00-EHn	2" x 2" x 0.25" Conductive Base/Transparent Lid Gel-Box with Non-Silicone Static Dissipative Elastomer	EH01,EH02, EH04, EH07
APV-22C-00-EHn	2" x 2" x 0.25" Conductive Gel-Box with Non-Silicone Static Dissipative Elastomer	EH01,EH02, EH04, EH07
APV-22T-00-EHn	2" x 2" x 0.25" Transparent Gel-Box with Non-Silicone Static Dissipative Elastomer	EH01,EH02, EH04, EH07
APV-610AS-00-EHn	2" x 2" x 0.5" Antistatic Gel-Box with Non-Silicone Static Dissipative Elastomer	EH01,EH02, EH04, EH07
APV-780C-00-EHn	2.875" x 2" x 0.75" Conductive Gel-Box with Non-Silicone Static Dissipative Elastomer	EH01,EH02, EH04, EH07
APV-750AS-00-EHn	2.875" x 2" x 1" Antistatic Gel-Box with Non-Silicone Static Dissipative Elastomer	EH01,EH02, EH04, EH07
APV-23CAS-00-EHn	3" x 2" x 0.375" Conductive Base/Antistatic Lid Gel-Box with Non-Silicone Static Dissipative Elastomer	EH01,EH02, EH04, EH07
APV-23CT-00-EHn	3" x 2" x 0.375" Conductive Base/Transparent Lid Gel-Box with Non-Silicone Static Dissipative Elastomer	EH01,EH02, EH04, EH07
APV-23C-00-EHn	3" x 2" x 0.375" Conductive Gel-Box with Non-Silicone Static Dissipative Elastomer	EH01,EH02, EH04, EH07
APV-23T-00-EHn	3" x 2" x 0.375" Transparent Gel-Box with Non-Silicone Static Dissipative Elastomer	EH01,EH02, EH04, EH07
APV-803CAS-00-EHn	3.5" x 2.5" x 0.5" Conductive Base/Antistatic Lid Gel-Box with Non-Silicone Static Dissipative Elastomer	EH01,EH02, EH04, EH07
APV-1135CAS-00-EHn	4.5" x 3.5" x 0.5" Conductive Base/Antistatic Lid Gel-Box with Non-Silicone Static Dissipative Elastomer	EH01,EH02, EH04, EH07
APV-1135C-00-EHn	4.5" x 3.5" x 0.5" Conductive Gel-Box with Non-Silicone Static Dissipative Elastomer	EH01,EH02, EH04, EH07
APV-1135T-00-EHn	4.5" x 3.5" x 0.5" Transparent Gel-Box with Non-Silicone Static Dissipative Elastomer	EH01,EH02, EH04, EH07
APV-1155CAS-00-EHn	4.5" x 3.5" x 0.875" Conductive Base/Antistatic Lid Gel-Box with Non-Silicone Static Dissipative Elastomer	EH01,EH02, EH04, EH07
APV-1155C-00-EHn	4.5" x 3.5" x 0.875" Conductive Gel-Box with Non-Silicone Static Dissipative Elastomer	EH01,EH02, EH04, EH07
APV-1155T-00-EHn	4.5" x 3.5" x 0.875" Transparent Gel-Box with Non-Silicone Static Dissipative Elastomer	EH01,EH02, EH04, EH07
APV-2025C-00-EHn	6" x 4" x 0.5" Conductive Gel-Box with Non-Silicone Static Dissipative Elastomer	EH01,EH02, EH04, EH07
APV-2025T-00-EHn	6" x 4" x 0.5" Transparent Gel-Box with Non-Silicone Static Dissipative Elastomer	EH01,EH02, EH04, EH07
APV-2125BASAS-00-EHn	7" x 5" x 1" Conductive Base/Antistatic Lid Gel-Box with Non-Silicone Static Dissipative Elastomer	EH01,EH02, EH04, EH07
APV-2125C-00-EHn	7" x 5" x 1" Conductive Gel-Box with Non-Silicone Static Dissipative Elastomer	EH01,EH02, EH04, EH07
APV-2125T-00-EHn	7" x 5" x 1" Clear Gel-Box with Non-Silicone Static Dissipative Elastomer	EH01,EH02, EH04, EH07
APV-2090C-00-EHn	7.75" x 3.5" x 1" Conductive Gel-Box with Non-Silicone Static Dissipative Elastomer	EH01,EH02, EH04, EH07
APV-1980T-00-EHn	9.937" x 3.5" x 0.625" Transparent Gel-Box with Non-Silicone Static Dissipative Elastomer	EH01,EH02, EH04, EH07

Quick Turn Gel-Box Parts

The following Gel-Box parts are available for purchase online in limited quantities with a 10-day lead time. For larger quantities, or for parts not listed below, please contact us for a quote.

Showing 1 – 5 of 43 results Showing all 43 results Showing the single result No results found

Image	Details
	AD-11T-00-X0 Dimensions:1.0" x 1.0" x 0.25"Minimum Order Quantity:100Box Material:Transparent Gel-BoxGel Tack… Purchase Now
	AD-11T-00-X4 Dimensions:1.0" x 1.0" x 0.25"Minimum Order Quantity:100Box Material:Transparent Gel-BoxGel Tack… Purchase Now
	AD-11C-00-X4 [...]Read More... from AD-11C-00-X4 Purchase Now
	AD-22T-00-X0 Dimensions:2.0" x 2.0" x 0.25"Minimum Order Quantity:100Box Material:Transparent Gel-BoxGel Tack… Purchase Now
	AD-22T-00-X4 Dimensions:2.0" x 2.0" x 0.25"Minimum Order Quantity:100Box Material:Transparent Gel-BoxGel Tack… Purchase Now

12…9
