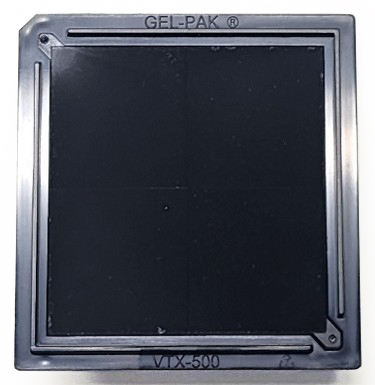

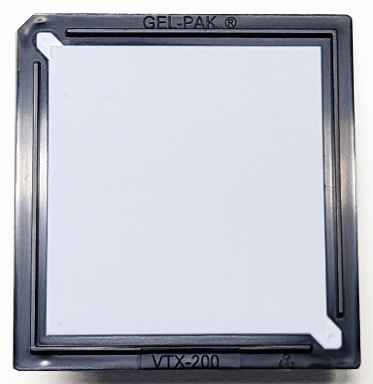

VTX Device Carriers ☰ Quick Links × Quick Links E-Store Request Quote Request Sample Contact Technical Support Product Selection Wizard Calculate Number Of Devices/Carrier Gel-Pak Brochure VTX VERTEC®Textured Device Carrier (VTX Series) Gel-Pak’s 2” x 2” VTX Tray is a textured, pocketless device carrier based on our proprietary Vertec® elastomer. The tray is designed to secure semiconductor components and optical lenses/filters during shipping and handling. Safely immobilizes semiconductor devices and optical lenses/filters. Comprised of 2” molded tray with textured non-silicone elastomer. Devices can be easily handled manually or with automated pick-and-place equipment. Ideal for high volume applications. Request a Quote Request a Sample Black VTX White VTX For your specific device sizes refer to Die Calculator Program for determining the number of devices per box type. VTX Details VTX Applications Datasheets Resources VTX Sizes 2” Elastomer Vertec® non-silicone textured elastomer (FDA and USP approved) Device Sizes Low Tack: 100µm to ~1mm, Thickness <200um Medium Tack: 1-10mm, Thickness <750um High Tack: >750um Usable Area 40mm x 40mm Tray Material Black Conductive Surface Resistance >E12ohms Storage Temperature -+10 to +50° C Tack Levels Medium (M), High (H) Printed Grids Available upon request Elastomer Color Available in white and black Gel-Pak VTX carriers immobilize components in place during shipping hand handling. Ultra Small Die Optics High Volume pick and place applications For your specific device sizes refer to Die Calculator Program for determining the number of devices per box type. Index #TD-124 DescriptionVTX Tray Product Datasheet AvailabilityDownload Elastomer Technology Overview Product Selection Wizard VTX Part Number Catalog Available with Clear or White Vertec Elastomer VTX Products can be customized with a print or a grid Tack Level = High (H), Medium (M) Low (L) Tray/Lid Materials = Conductive (C) = Black Part Number Description VTX-22-500CC-00B-L 2″ x 2″ Clear Textured 500 Mesh Vertec Overmolded on Black Conductive Tray with Conductive Lid, Low Tack VTX-22-100CC-00B-M 2″ x 2″ Clear Textured 100 Mesh Vertec Overmolded on Black Conductive Tray with Conductive Lid, Medium Tack VTX-22-100CC-00B-H 2″ x 2″ Clear Textured 100 Mesh Vertec Overmolded on Black Conductive Tray with Conductive Lid, High Tack VTX-W-22-500CC-00B-L 2″ x 2″ White Textured 500 Mesh Vertec Overmolded on Black Conductive Tray with Conductive Lid, Low Tack VTX-W- 22-100CC-00B-M 2″ x 2″ White Textured 100 Mesh Vertec Overmolded on Black Conductive Tray with Conductive Lid, Medium Tack VTX-W-22-100CC-00B-H 2″ x 2″ White Textured 100 Mesh Vertec Overmolded on Black Conductive Tray with Conductive Lid, High Tack Visit our Product Selection Wizard to find the right Gel-Pak for your Application. Visit Now!
