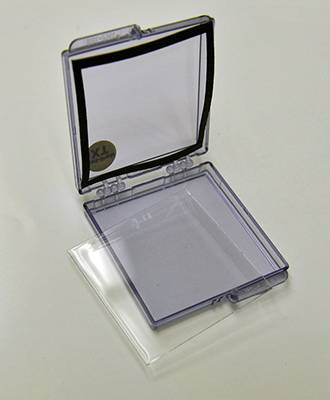

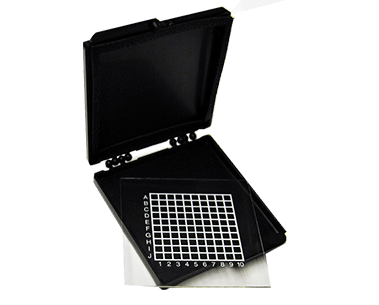

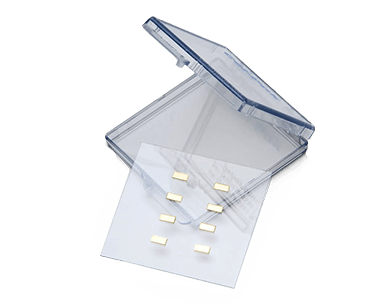

Gel-Slide™ ☰ Quick Links × Quick Links E-Store Request Quote Request Sample Contact Technical Support Product Selection Wizard Calculate Number Of Devices/Carrier Gel-Pak Brochure Gel-Slide™Gel-Slide (CD Series) Gel-Pak’s Gel-Slide (CD Series) consists of a 2″ x 2″ pocketless glass slide stored in a plastic hinged box. Gel-Pak’s proprietary Gel coating is applied directly to the surface of the glass slide. Similar to the Gel-Box™ and Gel-Tray® products, these versatile carriers immobilize devices during shipping, handling and processing. The Gel-Slide can be used in applications up to 220°C for extended periods of time. The Gel-Slide is designed for higher temperature applications such as bonding and reflow where a plastic tray will not work. The CD glass slides are also ideal for back side inspection due to their optical clarity. Ideal for: Applications up to 220˚C Backside inspection Devices where direct contact with the top surface or edges should be avoided. Devices that are handled with tweezers or by hand. Multiple device sizes (no pockets) in same Gel-Slide. Handling small components or large assembled modules. Request a Quote Request a Sample CD-22T CD-22C For your specific device sizes refer to Die Calculator Program for determining the number of devices per box type. Gel-Slide (CD Series) Details Gel-Tray Applications Datasheets Resources Gel-Slide Sizes 2” x 2” Elastomer Traditional Gel Box/Tray Configurations Glass slide available in a variety of tray and hinged box top/bottom material configurations Box Materials Transparent, Conductive Black, Transparent Antistatic Prints/Grids Wide assortment of prints, and grids available (see print options) Temperature Range Up to 220˚C (Tray only) Traditional Gel Tack Levels Gel-Slide(CD Series) are ideal for immobilizing a variety of components during shipping and handling including: Optics Semiconductor devices Medical components Photonic devices MEMs AFM tips Lasers LEDs Precision components For your specific device sizes refer to Die Calculator Program for determining the number of devices per box type. Index #TD-004 DescriptionGel Composition (FT-IR) AvailabilityContact Factory Index #TD-005 DescriptionGEL Ionic Properties AvailabilityContact Factory Index #TD-006 DescriptionRoHS Test Report AvailabilityDownload Index #TD-007 DescriptionGel Optical Properties AvailabilityDownload Index #TD-012 DescriptionGEL Long-Term Aging Study AvailabilityDownload Index #TD-017 DescriptionESD Properties AvailabilityDownload Index #TD-018 DescriptionBox/Tray Material Temperature Properties AvailabilityContact Factory Index #TD-019 DescriptionInternal Clearances and Useable Areas AvailabilityDownload Index #TD-029 DescriptionREACH Test Report AvailabilityDownload Index #TD-039 DescriptionVertec Outgassing AvailabilityContact Factory Index #TD-041 DescriptionBiocompatibility test (Cytotoxicity) AvailabilityDownload Index #TD-047 DescriptionVertec TPE Product SDS AvailabilityContact Factory Index #TD-049 DescriptionStandard Gel Products SDS AvailabilityContact Factory Index #TD-050 DescriptionGel-Pak Halogens Certificate AvailabilityContact Factory Index #TD-051 DescriptionVertec_vs_Silicone FTIR AvailabilityContact Factory Index #TD-062 DescriptionVertec_PU_FTIR AvailabilityContact Factory Index #TD-063 DescriptionVertec Polyurethane Elastomer SDS AvailabilityContact Factory Index #TD-070 DescriptionVertec FM71 Biocompatibility AvailabilityDownload Index #TD-071 DescriptionVertec PolyU Biocompatibility AvailabilityDownload Index #TD-087 DescriptionVertec EH02 & EH04 Outgassing AvailabilityContact Factory Index #TD-088 DescriptionAD AV APV Gel-Box Comparison AvailabilityDownload Index #TD-095 Description Elastomer Tack Chart AvailabilityDownload Index #TD-102 DescriptionTD-102B GP TPU FILM SDS AvailabilityContact Factory Index #TD-139 DescriptionGel-Pak Halogens Test AvailabilityContact Factory Elastomer Technology Overview Product Selection Wizard Gel-Box/Gel-Tray User Guide Product Drawings Calculate the Number of Devices per Carrier Print Options Part Number Descriptions Gel-Tray Video Gel-Slide™ (CD Series) Part Number Catalog Gel-Box CD Series with Traditional Gel-Elastomer Xn = Gel Tack Level (XT, X0, X4, X5, X6, X8) Conductive (C) = Black Antistatic (AS) = Tinted/Translucent Transparent (T) = Clear Styrene Part Number Description Tack Levels Available CD-22T-02-Xn 2" x 2" Glass Slide in Transparent Hinged Box XT, X0, X4, X5, X6, X8 CD-22C-02-Xn 2" x 2" Glass Slide in Conductive Hinged Box XT, X0, X4, X5, X6, X8 CD-22AS-02-Xn 2" x 2" Glass Slide in Antistatic Hinged Box XT, X0, X4, X5, X6, X8 Quick Turn Gel-Slide (CD Sereies) Parts The following Gel-Slide (CD Series) parts are available for purchase online in limited quantities with a 10-day lead time. For larger quantities, or for parts not listed below, please contact us for a quote. Showing 0 – 0 of 0 results Showing all 0 results Showing the single result No results found Sort by Price low to high Sort by Popularity Sort by Rating Sort by Price low to high Sort by Price high to low Sort by Newness Sort by Name A - Z Sort by Name Z - A Filters Sort results Reset Apply No results found. Clear filters and try again? Visit our Product Selection Wizard to find the right Gel-Pak for your Application. Visit Now!
