Vacuum Release Accessories

​Integrated Vacuum Station/Pick-up Tool (GP-TrayVac/A)

The system uses customer supplied compressed air (60-80 psi at 0.5 SCFM) which generates a continuous vacuum to the underside of a Gel-Pak® VR tray to place it in release mode.

The integrated system provides a special metal fixture plate for holding the VR tray along with a continuous vacuum pick-up tool which uses the same vacuum source. Separate on/off switches for the tray vacuum plate and the pick-up tool.

The system comes with 9 individual vacuum tips for handling devices from 0.100" to 0.500" and 4ft of supply hose. The fixture can accommodate both 2" and 4" vacuum release trays.

GP-TrayVac/A | Gel-Pak® | Vacuum Release Accessories
GP-TrayVac/A

​Vacuum Hand Pump (VHP-24)

The Vacuum Hand Pump product is ideal for low volume manufacturing and R&D applications. It is a manual hand pump that provides 25" Hg of static vacuum to the underside of a Gel-Pak VR tray to place it in release mode.

The VHP-24 includes the hand pump (VHP), tubing, and a special metal fixture plate (VP-24) for holding the VR tray. The fixture is designed for both 2" and 4" vacuum release trays. It can also accommodate Large Format VR products. The plate and hand pump can also be purchased separately.

VHP-24 | Gel-Pak® | Vacuum Release Accessories
VHP-24

GP-PortaVac (GP-PortaVac)

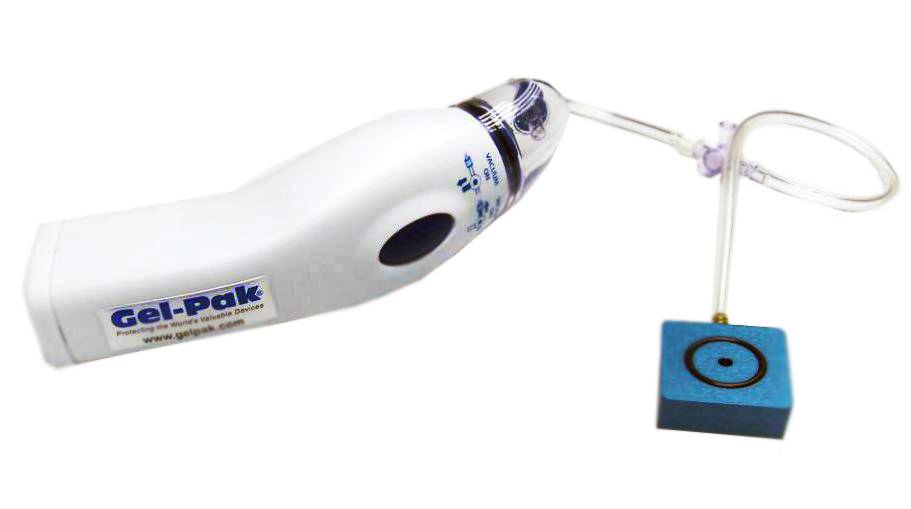

GP-PortaVac is a lightweight, low-cost, battery-operated vacuum pump system for unloading devices from Gel-Pak's VR trays. It is ideal for low volume manufacturing and R&D applications.
GP-PortaVac | Gel-Pak® | Vacuum Release Accessories
GP-PortaVac

​Vacuum Release Station (VRS-24)

The Vacuum Release Station uses customer supplied continuous vacuum and applies it to the underside of a Gel-Pak VR tray to place it in release mode.

The VRS-24 includes an on/off valve box (VVB), tubing, and a special metal fixture plate (VP-24) for holding the VR tray. The fixture is designed for both 2" and 4" vacuum release trays. It can also accommodate Large Format VR products. The plate and valve box can be purchased separately.

VRS-24 | Gel-Pak® | Vacuum Release Accessories
VRS-24

​Wafer/Large Format VR Vacuum Plate (VP-900)

A special metal fixture plate designed to hold VR-925, VR-926, or VR-927 large format products while applying vacuum. The VP-900 functionality is similar to a VP-24 plate but is designed for use with the larger VR products.

Vacuum can be supplied to the VP-900 using the same VVB or VHP products described above.

VP-900 | Gel-Pak® | Vacuum Release Accessories
VP-900

Pen-Vac Vacuum Pickup Tool (VPV)

The Pen-Vac tool is ideal for manually offloading devices from Vacuum Release trays. The ESD-safe pickup tool is a self-contained unit and can lift up to 500 grams. It does not require hoses or batteries to operate. The Pen-Vac tool includes six tips with 1/8", 1/4" and 3/8" suction cups (one each of straight and angled shafts).
Pen Vac (VPV) | Gel-Pak® | Vacuum Release Accessories
Pen Vac (VPV)

​Outer Clips for VR Tray with Lid (Required for -00B style)

Part Number: GP-CLIP-22T

2" Natural Polypropylene

GP-CLIP-22T 2 Natural Polypropylene | Gel-Pak® | Vacuum Release Accessories

Part Number: GP-CLIP-22C

2" Conductive Polypropylene

GP-CLIP-22C 2 Conductive Polypropylene | Gel-Pak® | Vacuum Release Accessories

Part Number: GP-CLIP-44T

4" Natural Polypropylene

GP-CLIP-44T 4 Natural Polypropylene | Gel-Pak® | Vacuum Release Accessories

Part Number: GP-CLIP-44C

4" Conductive Polypropylene

GP-CLIP-44C 4 Conductive Polypropylene | Gel-Pak® | Vacuum Release Accessories

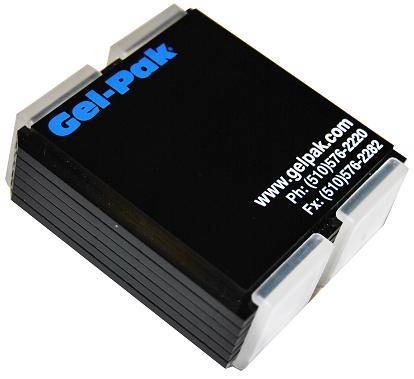

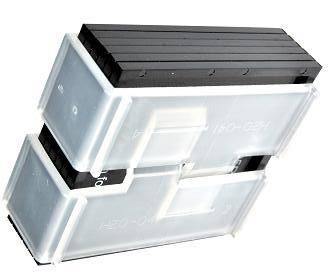

​2" Clip Pair for 5-Stack (5 Stacked 2"Trays with Single Lid)

Part Number: GP-CLIP-22T/5

Natural Polypropylene

GP-CLIP-22T/10 Natural Polypropylene | Gel-Pak® | Vacuum Release Accessories GP-CLIP-22T/5 Natural Polypropylene | Gel-Pak® | Vacuum Release Accessories

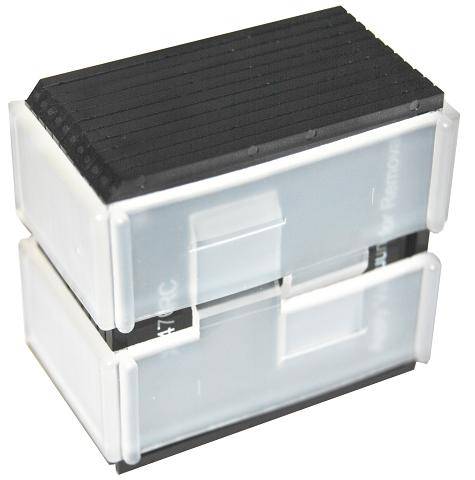

​2" Clip Pair for 10-Stack (10 Stacked 2" Trays with Single Lid)

Part Number: GP-CLIP-22T/10

Natural Polypropylene

GP-CLIP-22T/10 Natural Polypropylene | Gel-Pak® | Vacuum Release Accessories GP-CLIP-22T/10 Natural Polypropylene | Gel-Pak® | Vacuum Release Accessories

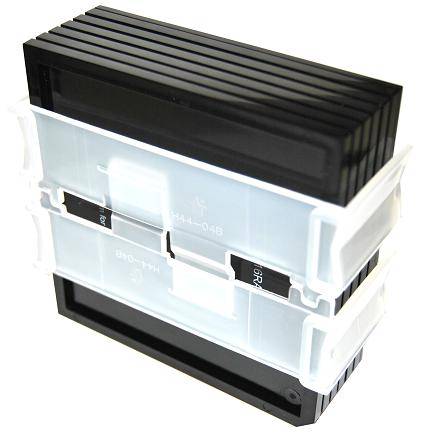

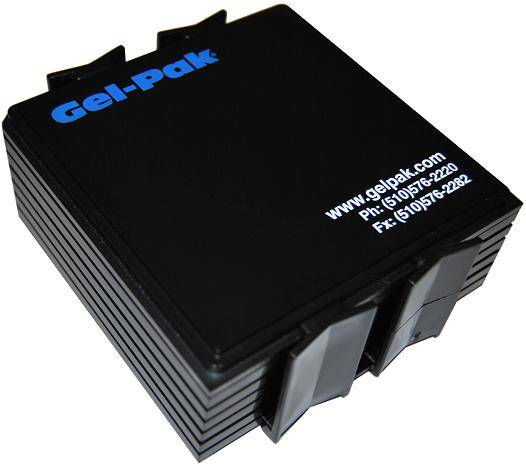

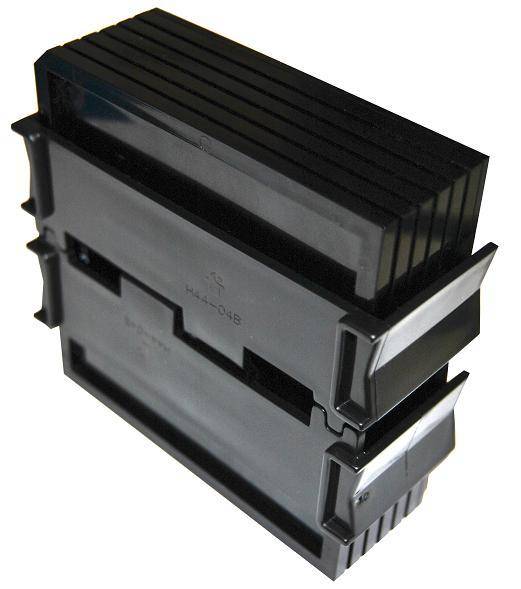

​4" Clip Pair for 6-Stack (6 Stacked 4" Trays with Single Lid)

Part Number: GP-CLIP-44T/6

Natural Polypropylene

GP-CLIP-44T/6 Natural Polypropylene | Gel-Pak® | Vacuum Release Accessories GP-CLIP-44T/6 Natural Polypropylene | Gel-Pak® | Vacuum Release Accessories

Part Number: GP-CLIP-44C/6

Conductive Polypropylene

GP-CLIP-44C/6 Conductive Polypropylene | Vacuum Release Accessories | Gel-Pak® GP-CLIP-44C/6 Conductive Polypropylene | Vacuum Release Accessories | Gel-Pak®
