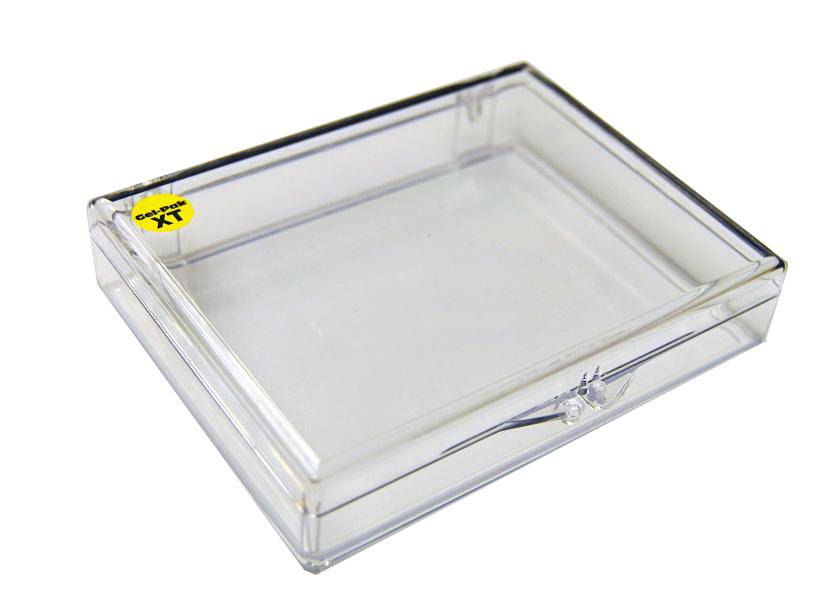

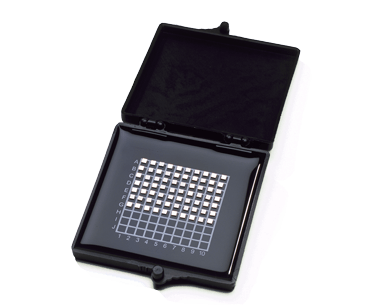

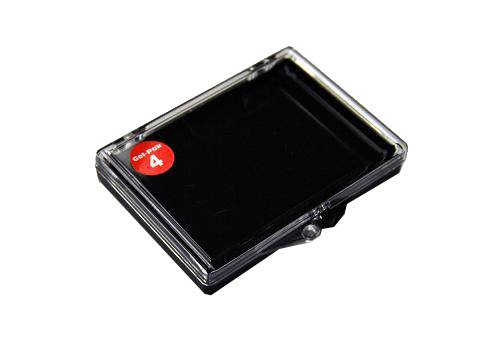

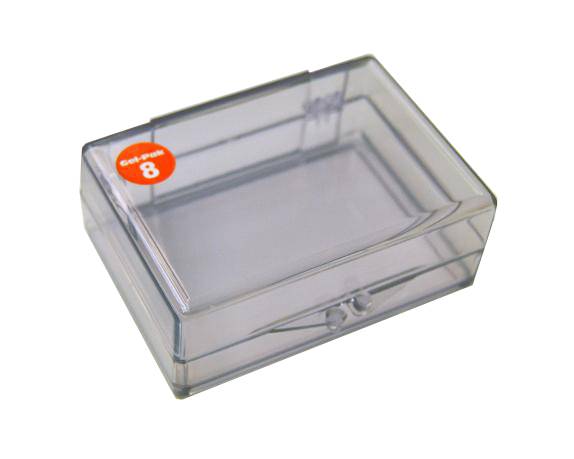

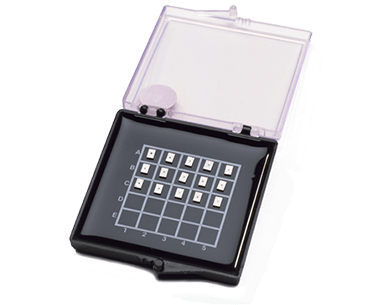

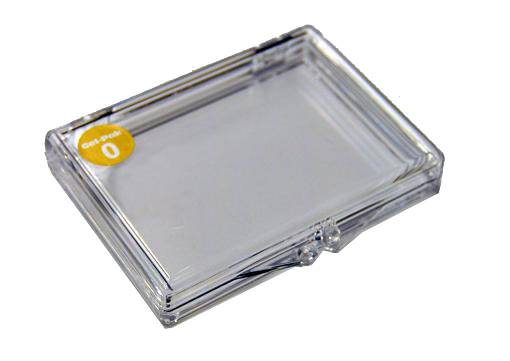

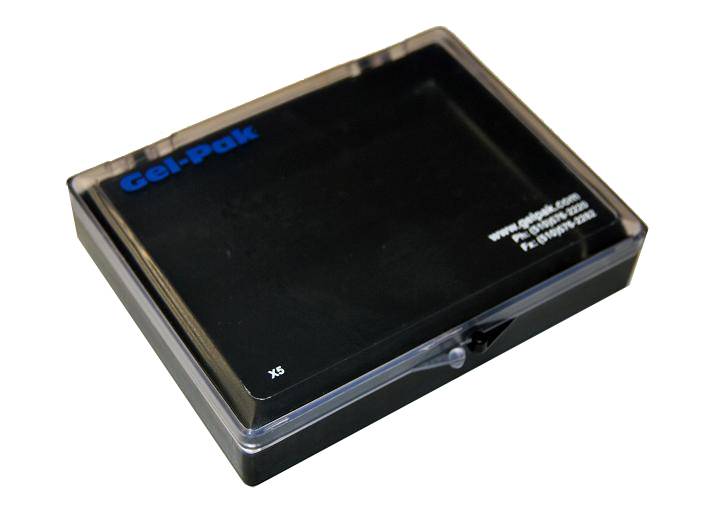

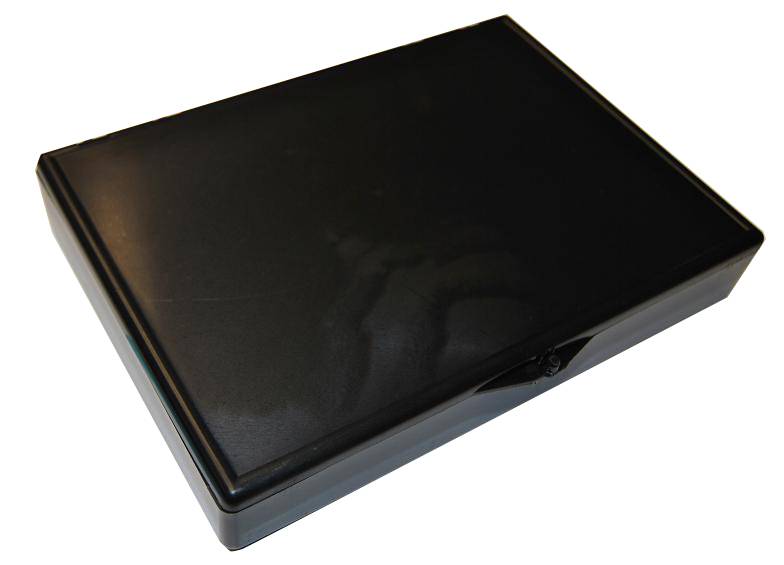

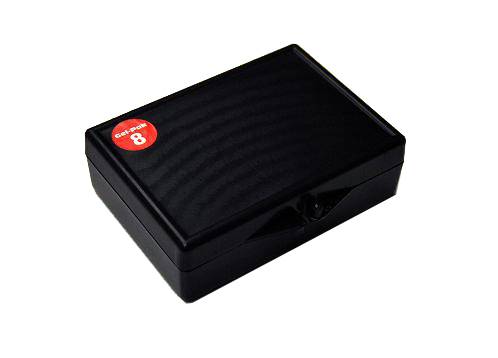

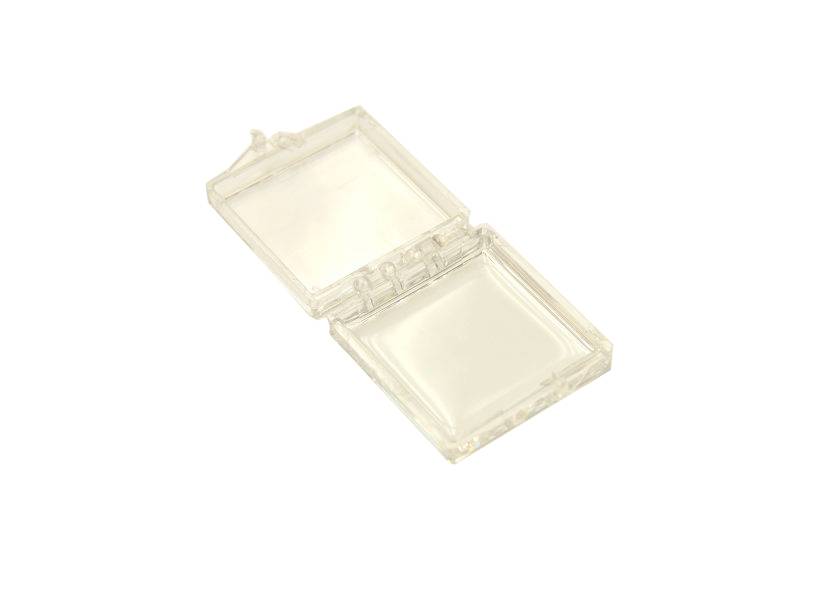

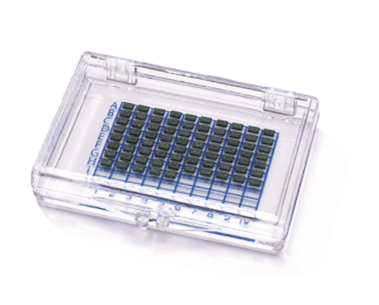

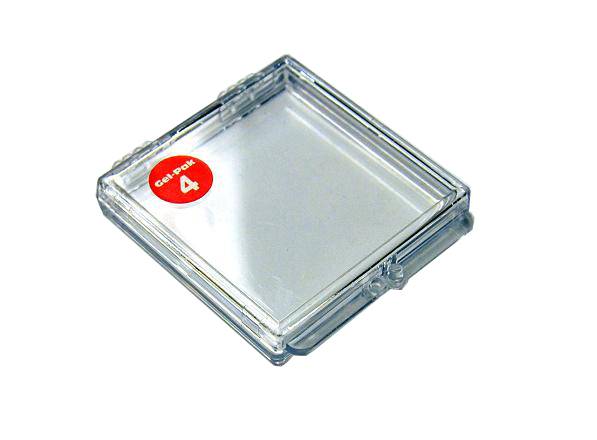

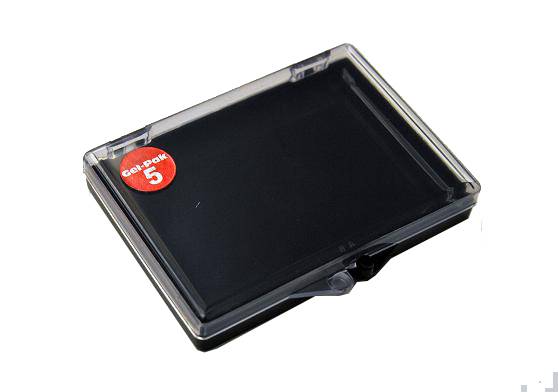

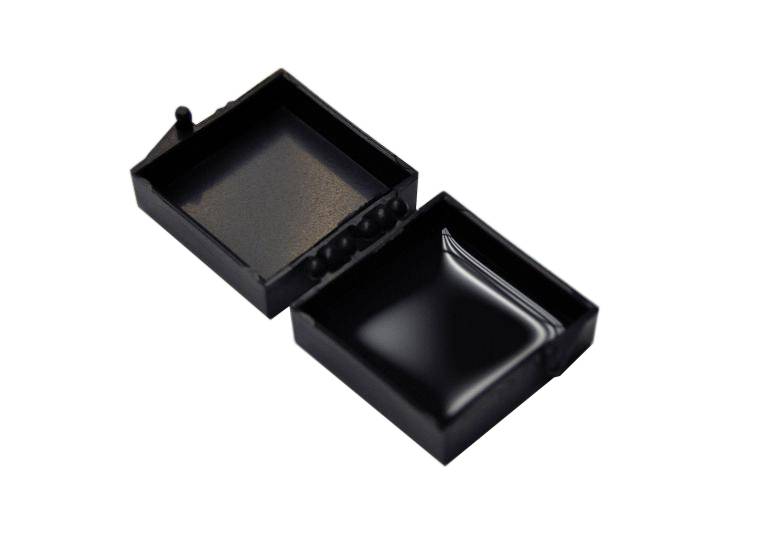

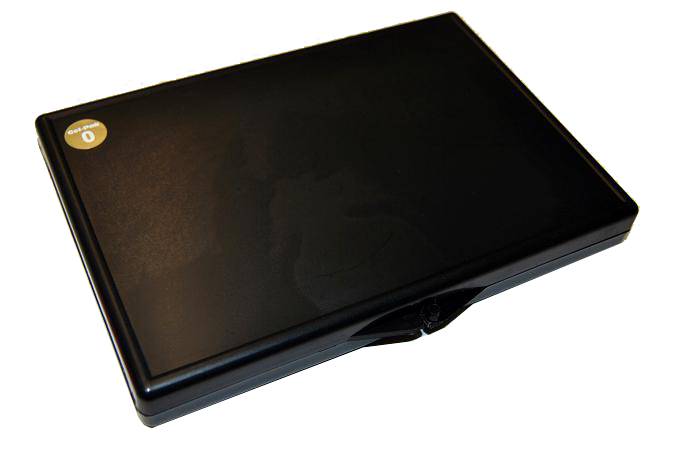

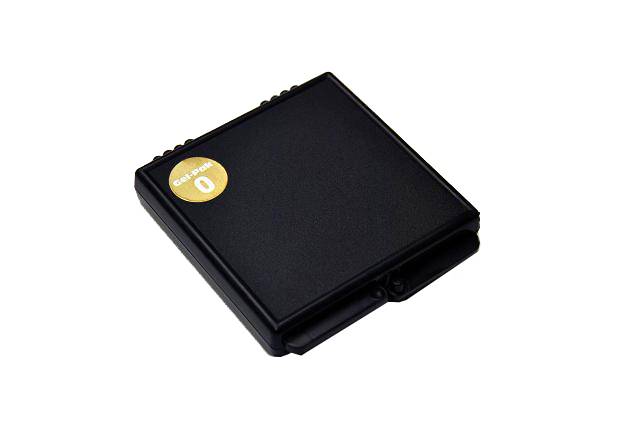

Gel-Box™ ☰ Quick Links × Quick Links E-Store Request Quote Request Sample Contact Technical Support Product Selection Wizard Calculate Number Of Devices/Carrier Gel-Pak Brochure Gel-BoxGel (AD Series) or Vertec™ (APV Series) Gel-Pak’s Gel-Box (AD, APV Series) is comprised of a plastic hinged box with our proprietary Gel or non-silicone Vertec elastomer applied directly to the bottom. These versatile “pocketless” carriers immobilize devices during shipping, handling and processing. Ideal for: Devices where direct contact with the top surface or edges should be avoided. Devices that are handled with tweezers or by hand. Multiple device sizes (no pockets) in same Gel-Box. Handling small components or large assembled modules. For your specific device sizes refer to Die Calculator Program for determining the number of devices per box type. Request a Quote Request a Sample AD-22C AD-23T AD-22CAS These are samples of Gel-Box products. They are available in a variety of sizes and constructions. Please refer to Gel-Box Standard Part Number Catalogs for options. Gel-Box Details Gel-Pak Applications Datasheets Resources Gel-Box Sizes Ranges from 1”x 1” up to 7” x 5” Elastomer Traditional Gel (AD Series) or Silicone-Free Vertec® (APV Series) Box Configurations Available in variety of box top/bottom material configurations Box Materials Transparent, Conductive Black, Transparent Antistatic Prints/Grids Wide assortment of prints, grids available Traditional Gel Tack Levels Silicone-Free Vertec Tack Levels Gel-Box (AD,APV Series) are ideal for immobilizing a variety of components during shipping and handling including: Optics Semiconductor devices Medical components AFM tips For your specific device sizes refer to Die Calculator Program for determining the number of devices per box type. Index #TD-002 DescriptionWF/PF Film Outgassing AvailabilityContact Factory Index #TD-004 DescriptionGel Composition (FT-IR) AvailabilityContact Factory Index #TD-005 DescriptionGEL Ionic Properties AvailabilityContact Factory Index #TD-006 DescriptionRoHS Test Report AvailabilityDownload Index #TD-007 DescriptionGel Optical Properties AvailabilityDownload Index #TD-012 DescriptionGEL Long-Term Aging Study AvailabilityDownload Index #TD-017 DescriptionESD Properties AvailabilityDownload Index #TD-018 DescriptionBox/Tray Material Temperature Properties AvailabilityContact Factory Index #TD-019 DescriptionInternal Clearances and Useable Areas AvailabilityDownload Index #TD-029 DescriptionREACH Test Report AvailabilityDownload Index #TD-039 DescriptionVertec Outgassing AvailabilityContact Factory Index #TD-041 DescriptionBiocompatibility test (Cytotoxicity) AvailabilityDownload Index #TD-047 DescriptionVertec TPE Product SDS AvailabilityContact Factory Index #TD-049 DescriptionStandard Gel Products SDS AvailabilityContact Factory Index #TD-051 DescriptionVertec_vs_Silicone FTIR AvailabilityContact Factory Index #TD-062 DescriptionVertec_PU_FTIR AvailabilityContact Factory Index #TD-063 DescriptionVertec Polyurethane Elastomer SDS AvailabilityContact Factory Index #TD-068 DescriptionVertec EH07 Outgassing AvailabilityContact Factory Index #TD-070 DescriptionVertec FM71 Biocompatibility AvailabilityDownload Index #TD-071 DescriptionVertec PolyU Biocompatibility AvailabilityDownload Index #TD-085 DescriptionAPV Gel-Box Datasheet AvailabilityDownload Index #TD-087 DescriptionVertec EH02 & EH04 Outgassing AvailabilityContact Factory Index #TD-088 DescriptionAD AV APV Gel-Box Comparison AvailabilityDownload Index #TD-095 Description Elastomer Tack Chart AvailabilityDownload Index #TD-098 DescriptionVertec FK79 TPE Biocompatibility AvailabilityDownload Index #TD-102 DescriptionTD-102B GP TPU FILM SDS AvailabilityContact Factory Index #TD-116 DescriptionVertec-PU Long-Term Aging Study AvailabilityDownload Index #TD-132 DescriptionVertec FP64 Long Term Aging Study AvailabilityDownload Elastomer Technology Overview Product Selection Wizard Gel-Box/Gel-Tray User Guide Product Drawings Calculate the Number of Devices per Carrier Print Options Part Number Descriptions Gel-Box Video Gel-Box Part Number Catalog Gel-Box AD Series with Traditional Gel-Elastomer Xn = Gel Tack Level (XT, X0, X4, X5, X6, X8) Conductive (C) = Black Antistatic (AS) = Tinted/Translucent Transparent (T) = Clear Styrene Part Number Description Tack Levels Available AD-11C-00-Xn 1" x 1" x 0.5" Conductive Gel-Box with Traditional Gel Elastomer XT, X0, X4, X5, X6, X8 AD-11T-00-Xn 1" x 1" x 0.25" Transparent Gel-Box with Traditional Gel Elastomer XT, X0, X4, X5, X6, X8 AD-22AS-00-Xn 2" x 2" x 0.25" Antistatic Gel-Box with Traditional Gel Elastomer XT, X0, X4, X5, X6, X8 AD-22CAS-00-Xn 2" x 2" x 0.25" Conductive Base/Antistatic Lid Gel-Box with Traditional Gel Elastomer XT, X0, X4, X5, X6, X8 AD-22CT-00-Xn 2" x 2" x 0.25" Conductive Base/Transparent Lid Gel-Box XT, X0, X4, X5, X6, X8 AD-22C-00-Xn 2" x 2" x 0.25" Conductive Gel-Box with Traditional Gel Elastomer XT, X0, X4, X5, X6, X8 AD-22T-00-Xn 2" x 2" x 0.25" Transparent Gel-Box with Traditional Gel Elastomer XT, X0, X4, X5, X6, X8 AD-610AS-00-Xn 2" x 2" x 0.5" Antistatic Gel-Box with Traditional Gel Elastomer XT, X0, X4, X5, X6, X8 AD-780C-00-Xn 2.875" x 2" x 0.75" Conductive Gel-Box with Traditional Gel Elastomer XT, X0, X4, X5, X6, X8 AD-750AS-00-Xn 2.875" x 2" x 1" Antistatic Gel-Box XT, X0, X4, X5, X6, X8 AD-23CAS-00-Xn 3" x 2" x 0.375" Conductive Base/Antistatic Lid Gel-Box with Traditional Gel Elastomer XT, X0, X4, X5, X6, X8 AD-23CT-00-Xn 3" x 2" x 0.375" Conductive Base/Transparent Lid Gel-Box XT, X0, X4, X5, X6, X8 AD-23C-00-Xn 3" x 2" x 0.375" Conductive Gel-Box with Traditional Gel Elastomer XT, X0, X4, X5, X6, X8 AD-23T-00-Xn 3" x 2" x 0.375" Transparent Gel-Box with Traditional Gel Elastomer XT, X0, X4, X5, X6, X8 AD-803CAS-00-Xn 3.5" x 2.5" x 0.5" Conductive Base/Antistatic Lid Gel-Box with Traditional Gel Elastomer XT, X0, X4, X5, X6, X8 AD-1135CAS-00-Xn 4.5" x 3.5" x 0.5" Conductive Base/Antistatic Lid Gel-Box XT, X0, X4, X5, X6, X8 AD-1135C-00-Xn 4.5" x 3.5" x 0.5" Conductive Gel-Box with Traditional Gel Elastomer XT, X0, X4, X5, X6, X8 AD-1135T-00-Xn 4.5" x 3.5" x 0.5" Transparent Gel-Box with Traditional Gel Elastomer XT, X0, X4, X5, X6, X8 AD-1155CAS-00-Xn 4.5" x 3.5" x 0.875" Conductive Base/Antistatic Lid Gel-Box XT, X0, X4, X5, X6, X8 AD-1155C-00-Xn 4.5" x 3.5" x 0.875" Conductive Gel-Box with Traditional Gel Elastomer XT, X0, X4, X5, X6, X8 AD-1155T-00-Xn 4.5" x 3.5" x 0.875" Transparent Gel-Box XT, X0, X4, X5, X6, X8 AD-2025C-00-Xn 6" x 4" x 0.5" Conductive Gel-Box with Traditional Gel Elastomer XT, X0, X4, X5, X6, X8 AD-2025T-00-Xn 6" x 4" x 0.5" Transparent Gel-Box with Traditional Gel Elastomer XT, X0, X4, X5, X6, X8 AD-2125BASAS-00-Xn 7" x 5" x 1" Conductive Base/Antistatic Lid Gel-Box with Traditional Gel Elastomer XT, X0, X4, X5, X6, X8 AD-2125C-00-Xn 7" x 5" x 1" Conductive Gel-Box XT, X0, X4, X5, X6, X8 AD-2125T-00-Xn 7" x 5" x 1" Clear Gel-Box with Traditional Gel Elastomer XT, X0, X4, X5, X6, X8 AD-2090C-00-Xn 7.75" x 3.5" x 1" Conductive Gel-Box with Traditional Gel Elastomer XT, X0, X4, X5, X6, X8 AD-1980T-00-Xn 9.937" x 3.5" x 0.625" Transparent Gel-Box with Traditional Gel Elastomer XT, X0, X4, X5, X6, X8 Gel-Box APV Series with Non-Silicone Static Dissipative Elastomer EHn = Gel Tack Level (EH01,EH02, EH04, EH07) Conductive (C) = Black Antistatic (AS) = Tinted/Translucent Transparent (T) = Clear Styrene Part Number Description Tack Levels Available APV-11C-00-EHn 1" x 1" x 0.5" Conductive Gel-Box with Non-Silicone Static Dissipative Elastomer EH01,EH02, EH04, EH07 APV-11T-00-EHn 1" x 1" x 0.25" Transparent Gel-Box with Non-Silicone Static Dissipative Elastomer EH01,EH02, EH04, EH07 APV-22AS-00-EHn 2" x 2" x 0.25" Antistatic Gel-Box with Non-Silicone Static Dissipative Elastomer EH01,EH02, EH04, EH07 APV-22CAS-00-EHn 2" x 2" x 0.25" Conductive Base/Antistatic Lid Gel-Box with Non-Silicone Static Dissipative Elastomer EH01,EH02, EH04, EH07 APV-22CT-00-EHn 2" x 2" x 0.25" Conductive Base/Transparent Lid Gel-Box with Non-Silicone Static Dissipative Elastomer EH01,EH02, EH04, EH07 APV-22C-00-EHn 2" x 2" x 0.25" Conductive Gel-Box with Non-Silicone Static Dissipative Elastomer EH01,EH02, EH04, EH07 APV-22T-00-EHn 2" x 2" x 0.25" Transparent Gel-Box with Non-Silicone Static Dissipative Elastomer EH01,EH02, EH04, EH07 APV-610AS-00-EHn 2" x 2" x 0.5" Antistatic Gel-Box with Non-Silicone Static Dissipative Elastomer EH01,EH02, EH04, EH07 APV-780C-00-EHn 2.875" x 2" x 0.75" Conductive Gel-Box with Non-Silicone Static Dissipative Elastomer EH01,EH02, EH04, EH07 APV-750AS-00-EHn 2.875" x 2" x 1" Antistatic Gel-Box with Non-Silicone Static Dissipative Elastomer EH01,EH02, EH04, EH07 APV-23CAS-00-EHn 3" x 2" x 0.375" Conductive Base/Antistatic Lid Gel-Box with Non-Silicone Static Dissipative Elastomer EH01,EH02, EH04, EH07 APV-23CT-00-EHn 3" x 2" x 0.375" Conductive Base/Transparent Lid Gel-Box with Non-Silicone Static Dissipative Elastomer EH01,EH02, EH04, EH07 APV-23C-00-EHn 3" x 2" x 0.375" Conductive Gel-Box with Non-Silicone Static Dissipative Elastomer EH01,EH02, EH04, EH07 APV-23T-00-EHn 3" x 2" x 0.375" Transparent Gel-Box with Non-Silicone Static Dissipative Elastomer EH01,EH02, EH04, EH07 APV-803CAS-00-EHn 3.5" x 2.5" x 0.5" Conductive Base/Antistatic Lid Gel-Box with Non-Silicone Static Dissipative Elastomer EH01,EH02, EH04, EH07 APV-1135CAS-00-EHn 4.5" x 3.5" x 0.5" Conductive Base/Antistatic Lid Gel-Box with Non-Silicone Static Dissipative Elastomer EH01,EH02, EH04, EH07 APV-1135C-00-EHn 4.5" x 3.5" x 0.5" Conductive Gel-Box with Non-Silicone Static Dissipative Elastomer EH01,EH02, EH04, EH07 APV-1135T-00-EHn 4.5" x 3.5" x 0.5" Transparent Gel-Box with Non-Silicone Static Dissipative Elastomer EH01,EH02, EH04, EH07 APV-1155CAS-00-EHn 4.5" x 3.5" x 0.875" Conductive Base/Antistatic Lid Gel-Box with Non-Silicone Static Dissipative Elastomer EH01,EH02, EH04, EH07 APV-1155C-00-EHn 4.5" x 3.5" x 0.875" Conductive Gel-Box with Non-Silicone Static Dissipative Elastomer EH01,EH02, EH04, EH07 APV-1155T-00-EHn 4.5" x 3.5" x 0.875" Transparent Gel-Box with Non-Silicone Static Dissipative Elastomer EH01,EH02, EH04, EH07 APV-2025C-00-EHn 6" x 4" x 0.5" Conductive Gel-Box with Non-Silicone Static Dissipative Elastomer EH01,EH02, EH04, EH07 APV-2025T-00-EHn 6" x 4" x 0.5" Transparent Gel-Box with Non-Silicone Static Dissipative Elastomer EH01,EH02, EH04, EH07 APV-2125BASAS-00-EHn 7" x 5" x 1" Conductive Base/Antistatic Lid Gel-Box with Non-Silicone Static Dissipative Elastomer EH01,EH02, EH04, EH07 APV-2125C-00-EHn 7" x 5" x 1" Conductive Gel-Box with Non-Silicone Static Dissipative Elastomer EH01,EH02, EH04, EH07 APV-2125T-00-EHn 7" x 5" x 1" Clear Gel-Box with Non-Silicone Static Dissipative Elastomer EH01,EH02, EH04, EH07 APV-2090C-00-EHn 7.75" x 3.5" x 1" Conductive Gel-Box with Non-Silicone Static Dissipative Elastomer EH01,EH02, EH04, EH07 APV-1980T-00-EHn 9.937" x 3.5" x 0.625" Transparent Gel-Box with Non-Silicone Static Dissipative Elastomer EH01,EH02, EH04, EH07 Quick Turn Gel-Box Parts The following Gel-Box parts are available for purchase online in limited quantities with a 10-day lead time. For larger quantities, or for parts not listed below, please contact us for a quote. Showing 1 – 5 of 48 results Showing all 48 results Showing the single result No results found Sort by Price low to high Sort by Popularity Sort by Rating Sort by Price low to high Sort by Price high to low Sort by Newness Sort by Name A - Z Sort by Name Z - A Filters Sort results Reset Apply ImageNameDescriptionPurchase now AD-11T-00-X0Dimensions:1.0" x 1.0" x 0.25"Minimum Order Quantity:100Box Material:Transparent Gel-BoxGel Tack…Purchase nowAD-11T-00-X4Dimensions:1.0" x 1.0" x 0.25"Minimum Order Quantity:100Box Material:Transparent Gel-BoxGel Tack…Purchase nowAD-22T-00-X0Dimensions:2.0" x 2.0" x 0.25"Minimum Order Quantity:100Box Material:Transparent Gel-BoxGel Tack…Purchase nowAD-22T-00-X4Dimensions:2.0" x 2.0" x 0.25"Minimum Order Quantity:100Box Material:Transparent Gel-BoxGel Tack…Purchase nowAD-22T-00-X5Dimensions:2.0" x 2.0" x 0.25"Minimum Order Quantity:100Box Material:Transparent Gel-BoxGel Tack…Purchase now 12…10 Visit our Product Selection Wizard to find the right Gel-Pak for your Application. Visit Now!
