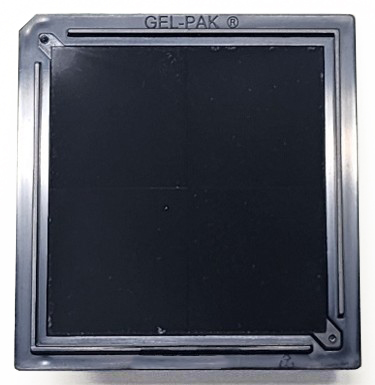

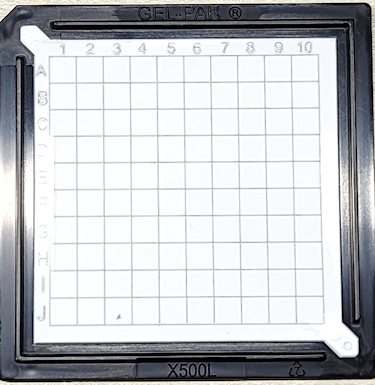

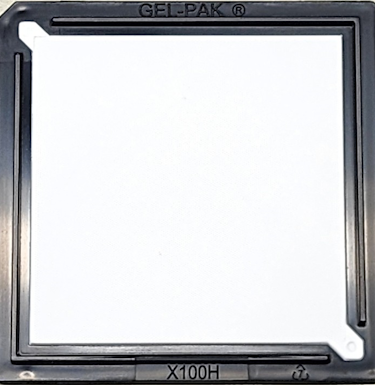

WPX Device Carriers ☰ Quick Links × Quick Links E-Store Request Quote Request Sample Contact Technical Support Product Selection Wizard Calculate Number Of Devices/Carrier Gel-Pak Brochure WPX VERTEC®Textured Device Carrier (WPX Series) Gel-Pak’s 2” x 2” WPX Tray is a textured, pocketless device carrier based on our proprietary Vertec® elastomer. The tray is designed to secure semiconductor components and optical lenses/filters during shipping and handling. Safely immobilizes semiconductor devices and optical lenses/filters. Comprised of 2” molded tray with textured non-silicone elastomer. Devices can be easily handled manually or with automated pick-and-place equipment. Ideal for high volume applications. Better alternative to waffle pack. No device migration Better compatibility with smaller devices No Tyvek, lid/clip required. More devices per tray Request a Quote Request a Sample Black WPX White WPX White WPX with Grid WPX Details WPX Applications Datasheets Resources WPX Sizes 2” Elastomer Vertec® non-silicone textured elastomer (FDA and USP approved) Device Sizes Low Tack: 100µm to ~1mm, Thickness <200um Medium Tack: 1-10mm, Thickness <750um High Tack: >750um Usable Area 40mm x 40mm Tray Material Black Conductive Surface Resistance >E12ohms Storage Temperature -+10 to +50° C Tack Levels Medium (M), High (H) Printed Grids Available upon request Elastomer Color Available in white and black Gel-Pak WPX carriers immobilize components in place during shipping hand handling. Small Die Optics High Volume pick and place applications For your specific device sizes refer to Die Calculator Program for determining the number of devices per box type. Index #TD-029 DescriptionREACH Test Report AvailabilityDownload Index #TD-050 DescriptionGel-Pak Halogens Certificate AvailabilityContact Factory Index #TD-138A DescriptionWPX Product Datasheet AvailabilityDownload Index #TD-139 DescriptionGel-Pak Halogens Test AvailabilityContact Factory Index #TD-140 DescriptionWPX Outgass AvailabilityDownload Elastomer Technology Overview Product Selection Wizard WPX Part Number Catalog n: Tack Level = High (H), Medium (M), Low (L). 500 Mesh only available in L. 100 Mesh only available in L, M. Mesh Texture = 500, 100 Tray/Lid Materials = Conductive (C) = Black. Antistatic (AS), Transparent (T) Available in = Stacks of 25 with Lid Elastomer Material = Clear TPE WPX is available with an optional standard print grid (-P) = P0083 (10×10), P0864 (20×20), P0868 (25×25) Part Number Description WPX-W-500CT-02-L 2″ x 2″ Clear Textured 500 Mesh Vertec Overmolded on Black Conductive Tray with Transparent Lid, Low Tack WPX-W-500CC-02-L 2″ x 2″ Clear Textured 500 Mesh Vertec Overmolded on Black Conductive Tray with Conductive Lid, Low Tack WPX-W-500CCT-02-L 2″ x 2″ Clear Textured 500 Mesh Vertec Overmolded on Black Conductive Tray in Conductive Base/Transparent Lid Hinged Box, Low Tack WPX-W-500CAS-02-L 2″ x 2″ Clear Textured 500 Mesh Vertec Overmolded on Black Conductive Tray in Antistatic Hinged Box, Low Tack WPX-W-500CCAS-02-L 2″ x 2″ Clear Textured 500 Mesh Vertec Overmolded on Black Conductive Tray in Conductive Base/Antistatic Lid Hinged Box, Low Tack WPX-W-500CC-00B-L 2″ x 2″ Clear Textured 500 Mesh Vertec Overmolded on Black Conductive Tray with Conductive Lid, Low Tack WPX-W-500CAS-00B-L 2″ x 2″ Clear Textured 500 Mesh Vertec Overmolded on Black Conductive Tray with Antistatic Lid, Low Tack WPX-W-500CC-00A-L 2″ x 2″ Clear Textured 500 Mesh Vertec Overmolded on Black Conductive Tray with Conductive High Clearance Lid, Low Tack WPX-W-500C-L (Tray only) 2″ x 2″ Clear Textured 500 Mesh Vertec Overmolded on Black Conductive Tray, Low Tack, Tray only WPX-W-100CT-02-n 2″ x 2″ Clear Textured 100 Mesh Vertec Overmolded on Black Conductive Tray with Transparent Lid, Low Tack WPX-W-100CC-02-n 2″ x 2″ Clear Textured 100 Mesh Vertec Overmolded on Black Conductive Tray with Conductive Lid, Low Tack WPX-W-100CCT-02-n 2″ x 2″ Clear Textured 100 Mesh Vertec Overmolded on Black Conductive Tray in Conductive Base/Transparent Lid Hinged Box, Low Tack WPX-W-100CAS-02-n 2″ x 2″ Clear Textured 100 Mesh Vertec Overmolded on Black Conductive Tray in Antistatic Hinged Box, Low Tack WPX-W-100CCAS-02-n 2″ x 2″ Clear Textured 100 Mesh Vertec Overmolded on Black Conductive Tray in Conductive Base/Antistatic Lid Hinged Box, Low Tack WPX-W-100CC-00B-n 2″ x 2″ Clear Textured 100 Mesh Vertec Overmolded on Black Conductive Tray with Conductive Lid, Low Tack WPX-W-100CAS-00B-n 2″ x 2″ Clear Textured 100 Mesh Vertec Overmolded on Black Conductive Tray with Antistatic Lid, Low Tack WPX-W-100CC-00A-n 2″ x 2″ Clear Textured 100 Mesh Vertec Overmolded on Black Conductive Tray with Conductive High Clearance Lid, Low Tack WPX-W-100C-n (Trays only) 2″ x 2″ Clear Textured 100 Mesh Vertec Overmolded on Black Conductive Tray, Low Tack, Tray only Visit our Product Selection Wizard to find the right Gel-Pak for your Application. Visit Now!
