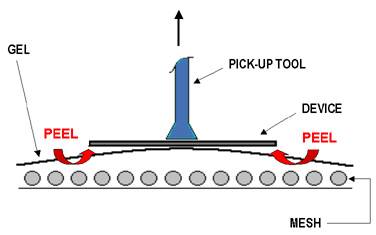

Nano Device Tray (NDT) ☰ Quick Links × Quick Links E-Store Request Quote Request Sample Contact Technical Support Product Selection Wizard Calculate Number Of Devices/Carrier Gel-Pak Brochure Nano Device Tray (NDT/NDTVP Series) Gel-Pak NDT/NDTVP product line is designed specifically for the shipping, handling, and storage of extremely small devices that require unloading using a manual vacuum pick-up tool or automated Pick & Place equipment. For these tiny devices, using the smallest VR-195 mesh density can still result in die tilt when vacuum is applied to the tray. Therefore, the NDT tray is recommended. Ideal for: High-volume automated device Pick & Place applications. Extremely small devices (250 µm x 250µm microns or less) Handling small bare die. No contact with edges or top surface of device. For your specific device sizes refer to Die Calculator Program for determining the number of devices per tray. Request a Quote Request a Sample This is a sample of the NDT-W-CAS-XT with a grid, please refer to the NDT product Catalog for options. Nano Device Tray Details How Does it Work NDT Applications Datasheets VR Accessories Resources Vacuum Release Sizes 2” x 2” Device Size Accommodates devices (X,Y) 250µm x 250 µm or less Elastomer Gel-Elastomer, Silicone-free ESD Vertec Product Construction Tray with Gel or non-silicone Vertec® film membrane over a mesh material with vacuum hole on underside of tray. Box/Tray Configurations Available in variety of tray and hinged box top/bottom material configurations Box/Tray Materials Transparent, Conductive Black, Transparent Antistatic Temperature Range Up to 75˚C Mesh Sizes NDT Prints/Grids Wide assortment of prints, grids available Traditional Gel Tack Levels Silicone-Free, ESD Vertec The Nano Device Tray (NDT) product is built similar to the 2″ VR tray, however with the NDT, vacuum is not applied to the tray for unloading. By not applying vacuum, the elastic Gel membrane can stretch upward (“tenting”) and allow the device to “peel” away from Gel as it is being lifted. The unload speed must be reduced when using this unload process. NDT only uses the lowest available Gel retention level (XT) or (EH02) and is available in both black and white mesh background colors for vision system compatibility. Gel-Pak’s NDT Trays are ideal for high-volume, automated device handling. The trays are used for immobilizing high-value components such as: Bare die Semiconductor devices Medical components Photonic devices MEMs AFM tips Lasers LEDs Precision components Index #TD-003 DescriptionVR Tray Outgassing AvailabilityContact Factory Index #TD-004 DescriptionGel Composition (FT-IR) AvailabilityContact Factory Index #TD-005 DescriptionGEL Ionic Properties AvailabilityContact Factory Index #TD-006 DescriptionRoHS Data AvailabilityDownload Index #TD-007 DescriptionGEL Optical Properties AvailabilityDownload Index #TD-012 DescriptionGel 5-Year Aging Study AvailabilityDownload Index #TD-017 DescriptionESD Properties AvailabilityDownload Index #TD-018 DescriptionBox/Tray Material Temperature Properties AvailabilityContact Factory Index #TD-019 DescriptionInternal Clearnaces and Usable Areas AvailabilityDownload Index #TD-029 DescriptionREACH Test Report AvailabilityDownload Index #TD-041 DescriptionBiocompatibility test (Cytotoxicity) AvailabilityDownload Index #TD-049 DescriptionStandard Gel Products SDS AvailabilityContact Factory Index #TD-060 DescriptionCleantape Datasheet AvailabilityDownload Index #TD-081 Description Polyester Mesh_ SDS AvailabilityContact Factory Index #TD-082 Description Nylon Mesh_SDS AvailabilityContact Factory Index #TD-089 Description VR/VRV/VRP Comparison AvailabilityDownload Index #TD-094 Description VR-CLIP-22C Datasheet AvailabilityDownload Index #TD-095 Description Elastomer Tack Chart AvailabilityDownload Index #TD-128 DescriptionGP Cleantape SDS AvailabilityContact Factory Integrated Vacuum Station/Pick-up Tool (GP-TrayVac-A) The system uses customer supplied compressed air (60-80 psi at 0.5 SCFM) which generates a continuous vacuum to the underside of a Gel-Pak® VR tray to place it in release mode. The integrated system provides a special metal fixture plate for holding the VR tray along with a continuous vacuum pick-up tool which uses the same vacuum source. Separate on/off switches for the tray vacuum plate and the pick-up tool. The system comes with 9 individual vacuum tips for handling devices from 0.100" to 0.500" and 4ft of supply hose. The fixture can accommodate both 2" and 4" vacuum release trays. Vacuum Release Station The Vacuum Release Station product is ideal for low volume manufacturing and R&D applications. It is a manual hand pump that provides 25" Hg of static vacuum to the underside of a Gel-Pak VR tray to place it in release mode. The GP-VHP-24 includes the hand pump (VHP), tubing, and a special metal fixture plate (VP-24) for holding the VR tray. The fixture is designed for both 2" and 4" vacuum release trays. It can also accommodate Large Format VR products. The plate and hand pump can also be purchased separately. GP-PortaVac (GP-PortaVac) GP-PortaVac is a lightweight, low-cost, battery-operated vacuum pump system for unloading devices from Gel-Pak's VR trays. It is ideal for low volume manufacturing and R&D applications. Vacuum Hand Pump (GP-VHP-24) The Vacuum Release Station uses customer supplied continuous vacuum and applies it to the underside of a Gel-Pak VR tray to place it in release mode. The GP-VRS-24 includes an on/off valve box (VVB), tubing, and a special metal fixture plate (VP-24) for holding the VR tray. The fixture is designed for both 2" and 4" vacuum release trays. It can also accommodate Large Format VR products. The plate and valve box can be purchased separately. Wafer/Large Format VR Vacuum Plate (GP-VP-900) A special metal fixture plate designed to hold VR-925, VR-926, or VR-927 large format products while applying vacuum. The GP-VP-900 functionality is similar to a VP-24 plate but is designed for use with the larger VR products. Vacuum can be supplied to the GP-VP-900 using the same VVB or VHP products described above. Pen-Vac Vacuum Pickup Tool (GP-VPV) The Pen-Vac tool is ideal for manually offloading devices from Vacuum Release trays. The ESD-safe pickup tool is a self-contained unit and can lift up to 500 grams. It does not require hoses or batteries to operate. The Pen-Vac tool includes six tips with 1/8", 1/4" and 3/8" suction cups (one each of straight and angled shafts). Outer Clips for VR Tray with Lid (Required for -00B style) Part Number: GP-CLIP-22T 2" Natural Polypropylene Part Number: GP-CLIP-22C 2" Conductive Polypropylene Part Number: GP-CLIP-44T 4" Natural Polypropylene Part Number: GP-CLIP-44C 4" Conductive Polypropylene 2" Clip Pair for 5-Stack (5 Stacked 2"Trays with Single Lid) Part Number: GP-CLIP-22T/5 Natural Polypropylene 2" Clip Pair for 10-Stack (10 Stacked 2" Trays with Single Lid) Part Number: GP-CLIP-22T/10 Natural Polypropylene 4" Clip Pair for 6-Stack (6 Stacked 4" Trays with Single Lid) Part Number: GP-CLIP-44T/6 Natural Polypropylene Part Number: GP-CLIP-44C/6 Conductive Polypropylene Elastomer Technology Overview Product Selection Wizard Product Drawings Calculate the Number of Devices per Carrier Print Options Part Number Descriptions Nano Device Tray (NDT) Standard Part Number Catalog 2″ NDT Trays with Traditional Gel Elastomer Only Available in XT Tack Level W Denotes White Colored Mesh / B Denotes Black Colored Mesh Vacuum should NOT be applied to the NDT Tray Box/Tray Materials: Conductive (C) = Black, Antistatic (AS) = Tinted/Translucent, Transparent (T) – Clear Styrene Can be Customized with Print or Grid Part Number Description Tack Levels NDT-W-CC-02-XT(Previously NDT/W-CC-02-XT) Conductive Nano Device Tray with White Mesh in Conductive Hinged Box XT NDT-B-CC-02-XT(Previously NDT/B-CC-02-XT) Conductive Nano Device Tray with Black Mesh in Conductive Hinged Box XT NDTW-CCT-02-XT(Previously NDT-W-CCT-02-XT) Conductive Nano Device Tray with White Mesh in Conductive Base, Clear Top Hinged Box XT NDT-W-CCT-02-XT(Previously NDT-W-CCT-02-XT) Conductive Nano Device Tray with White Mesh in Conductive Base, Clear Top Hinged Box XT NDT-W-CAS-02-XT(Previously NDT/W-CAS-02-XT) Conductive Nano Device Tray with White Mesh in Antistatic Hinged Box XT NDT-B-CAS-02-XT(Previously NDT/B-CAS-02-XT) Conductive Nano Device Tray with Black Mesh in Antistatic Hinged Box XT NDT-W-CC-00B-XT(Previously NDT/W-CC-00B-XT) Conductive Nano Device Tray with White Mesh with a Conductive Lid XT NDTB-CC-00B-XT(Previously NDT/B-CC-00B-XT) Conductive Nano Device Tray with Black Mesh with a Conductive Lid XT NDT-W-CAS-00B-XT(Previously NDT/W-CAS-00B-XT) Conductive Nano Device Tray with White Mesh with an Antistatic Lid XT NDT-B-CAS-00B-XT(Previously NDT/B-CAS-00B-XT) Conductive Nano Device Tray with Black Mesh with an Antistatic Lid XT NDTW-CT-02-XT(Previously NDT/W-CT-02-XT) Conductive Nano Device Tray with White Mesh in Transparent Hinged Box XT NDT-B-CT-02-XT(Previously NDT/B-CT-02-XT) Conductive Nano Device Tray with Black Mesh in Transparent Hinged Box XT NDTW-CT-00B-XT(Previously NDT/W-CT-00B-XT) Conductive Nano Device Tray with White Mesh with a Transparent Lid XT NDT-B-CT-00B-XT(Previously NDT/B-CT-00B-XT) Conductive Nano Device Tray with Black Mesh with a Transparent Lid XT NDTW-CCAS-02-XT(Previously NDT/W-CCAS-02-XT) Conductive Nano Device Tray with White Mesh in Conductive Base, Antistatic Top Hinged Box XT NDT-B-CCAS-02-XT(Previously NDT/B-CCAS-02-XT) Conductive Nano Device Tray with Black Mesh in Conductive Base, Antistatic Top Hinged Box XT 2″ NDT Trays with Vertec® Non-Silicone, ESD Gel-Elastomer Xn = Gel Tack Level Parameter (EH01, EH02) W Denotes White Colored Mesh / B Denotes Black Colored Mesh Vacuum should NOT be applied to the NDT Tray Box/Tray Materials: Conductive (C) = Black, Antistatic (AS) = Tinted/Translucent, Transparent (T) – Clear Styrene Can be Customized with Print or Grid Part Number Description Tack Levels NDTVP-W-CC-02-Xn(Previously NDTVP/W-CC-02-Xn) Conductive Nano Device Tray with White Mesh in Conductive Hinged Box EH01, EH02 NDTVP-B-CC-02-Xn(Previously NDTVP/B-CC-02-Xn) Conductive Nano Device Tray with Black Mesh in Conductive Hinged Box EH01, EH02 NDTVP-W-CCT-02-Xn(Previously NDTVP-W-CCT-02-Xn) Conductive Nano Device Tray with White Mesh in Conductive Base, Clear Top Hinged Box EH01, EH02 NDTVP-W-CCT-02-Xn(Previously NDTVP-W-CCT-02-Xn) Conductive Nano Device Tray with White Mesh in Conductive Base, Clear Top Hinged Box EH01, EH02 NDTVP-W-CAS-02-Xn(Previously NDTVP/W-CAS-02-Xn) Conductive Nano Device Tray with White Mesh in Antistatic Hinged Box EH01, EH02 NDTVP-B-CAS-02-Xn(Previously NDTVP/B-CAS-02-Xn) Conductive Nano Device Tray with Black Mesh in Antistatic Hinged Box EH01, EH02 NDTVP-W-CC-00B-Xn(Previously NDTVP/W-CC-00B-Xn) Conductive Nano Device Tray with White Mesh with a Conductive Lid EH01, EH02 NDTVP-B-CC-00B-Xn(Previously NDTVP/B-CC-00B-Xn) Conductive Nano Device Tray with Black Mesh with a Conductive Lid EH01, EH02 NDTVP-W-CAS-00B-Xn(Previously NDTVP/W-CAS-00B-Xn) Conductive Nano Device Tray with White Mesh with an Antistatic Lid EH01, EH02 NDTVPVP-B-CAS-00B-Xn(Previously NDTVPVP/B-CAS-00B-Xn) Conductive Nano Device Tray with Black Mesh with an Antistatic Lid EH01, EH02 NDTVP-W-CT-02-Xn(Previously NDTVP/W-CT-02-Xn) Conductive Nano Device Tray with White Mesh in Transparent Hinged Box EH01, EH02 NDTVP-B-CT-02-Xn(Previously NDTVP/B-CT-02-Xn) Conductive Nano Device Tray with Black Mesh in Transparent Hinged Box EH01, EH02 NDTVP-W-CT-00B-Xn(Previously NDTVP/W-CT-00B-Xn) Conductive Nano Device Tray with White Mesh with a Transparent Lid EH01, EH02 NDTVP-B-CT-00B-Xn(Previously NDTVP/B-CT-00B-Xn) Conductive Nano Device Tray with Black Mesh with a Transparent Lid EH01, EH02 NDTVP-W-CCAS-02-Xn(Previously NDTVP/W-CCAS-02-Xn) Conductive Nano Device Tray with White Mesh in Conductive Base, Antistatic Top Hinged Box EH01, EH02 NDTVP-B-CCAS-02-Xn(Previously NDTVP/B-CCAS-02-Xn) Conductive Nano Device Tray with Black Mesh in Conductive Base, Antistatic Top Hinged Box EH01, EH02 Quick Turn Nano Device Tray The following Nano Device Tray (NDT) parts are available for purchase online in limited quantities with a 10-day lead time. For larger quantities, or for parts not listed below, please contact us for a quote. Showing 1 – 2 of 2 results Showing all 2 results Showing the single result No results found Sort by Price low to high Sort by Popularity Sort by Rating Sort by Price low to high Sort by Price high to low Sort by Newness Sort by Name A - Z Sort by Name Z - A Filters Sort results Reset Apply ImageNameDescriptionPurchase now NDTB-CC-00B-XTDimensions:2.00" x 2.00" x 0.31"Minimum Order Quantity:100Box Material:Conductive Nano Device…Purchase nowNDTW-CC-00B-XT-P0041Dimensions:2.00" x 2.00" x 0.31"Minimum Order Quantity:100Box Material:Conductive Nano Device…Purchase now Visit our Product Selection Wizard to find the right Gel-Pak for your Application. Visit Now!
