VTX 2" Pocketless Tray for Automated Device Handling Applications

Gel-Pak’s VTX pocketless device carrier for automated device handling applications provides superior protection over traditional pocketed waffle pack / chip trays. Based on our proprietary Vertec® material, this bio-inspired carrier uses the adhesive properties of a texturized elastomer material.

  • Universal carrier that holds devices in place without need for custom molded pockets
  • No contact with top or edges of device
  • Securing devices that tend to migrate out of pockets of traditional waffle packs
  • Devices loaded/off-loaded with automated pick-and-place equipment
  • Compatible with device sizes 700µm to 5mm
  • No die migration or spillage
  • No vacuum required
  • Ideal for semiconductor IC’s or optical components

VTX Configuration:

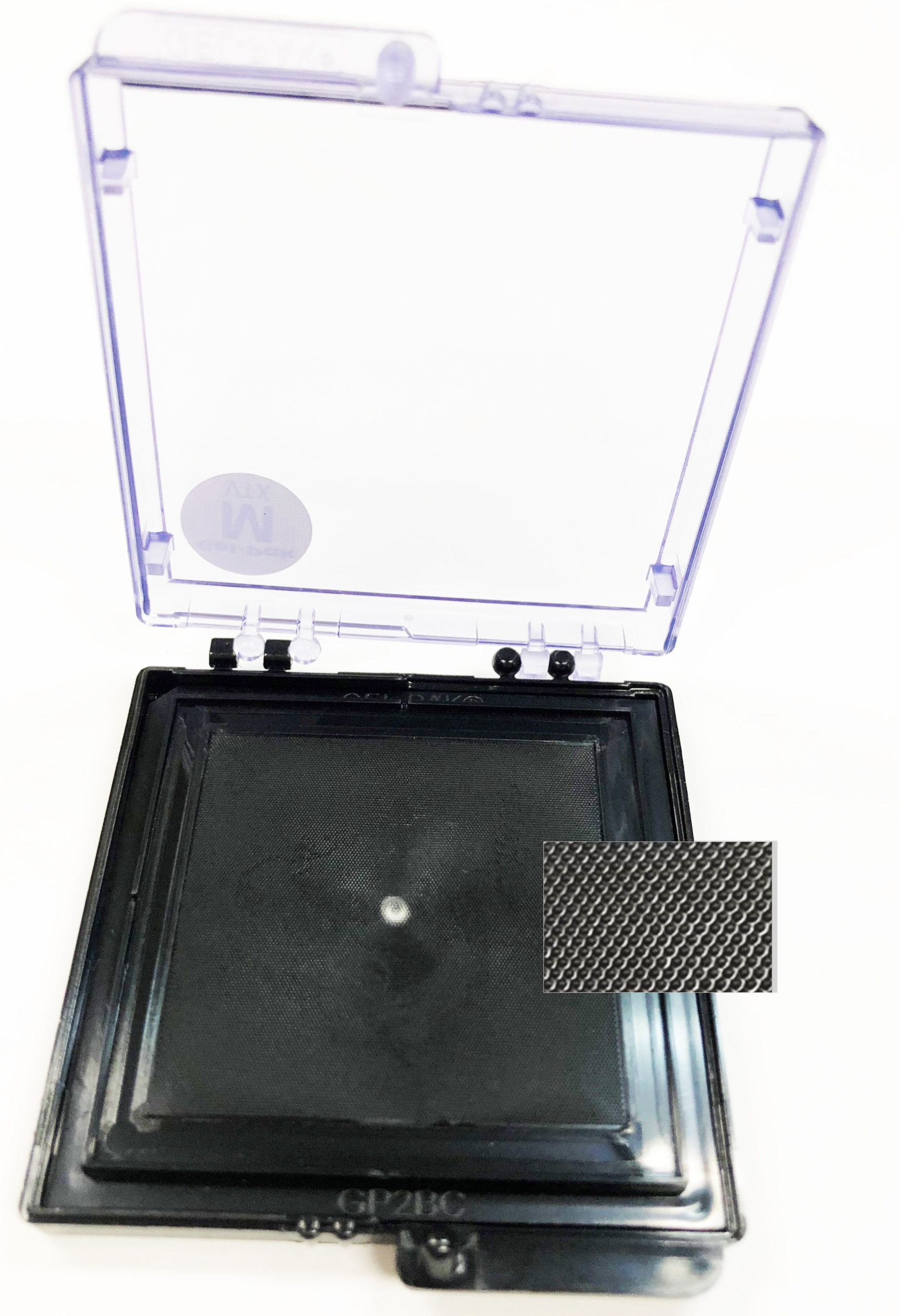

  • 2” x 2” polycarbonate molded tray with a textured, non-silicone Vertec elastomer surface.
  • Available in variety of lid /hinged box combinations:
    • Transparent
    • Conductive Black
    • Transparent Antistatic
  • Available low (100-L), medium (100-M), and high (100-H)tack levels
  • Operating temperature +10 to +35° C
