Gel-Slide™ (CD Series)

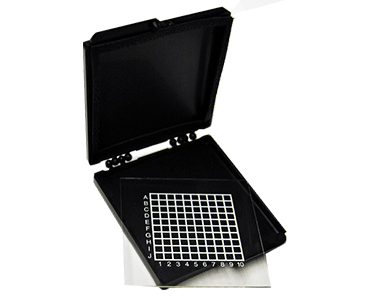

Gel-Pak's Gel-Slide (CD Series) consists of a 2" x 2" pocketless glass slide stored in a plastic hinged box. Gel-Pak's proprietary Gel coating is applied directly to the surface of the glass slide. The Gel-Slide product is intended for manual applications in which devices are loaded and unloaded using tweezers or fingers.

The Gel-Slide can be used in applications up to 220°C for extended periods of time. The Gel-Slide is designed for higher temperature applications such as bonding and reflow where a plastic tray will not work. The CD glass slides are also ideal for back side inspection due to their optical clarity.



(Prints Optional)

Gel-Slide Applications:

  • Applications up to 220° C
  • Devices where direct contact with the top surface or edges should be avoided.
  • Devices that are handled with tweezers or by hand.
  • Multiple device sizes (no pockets) in same Gel-Slide.
  • Handling small components or large assembled modules.
  • For your specific device sizes refer to Die Calculator Program for determining the number of devices per box type.

Gel-Slide Configurations:

  • 2” x 2” Standard Gel-Slide size.
  • Slides available in clear glass material.
  • Available in variety of hinged box top/bottom material configurations:
    • Transparent
    • Conductive Black
    • Transparent Antistatic

  • A Wide assortment of optional printed grid patterns readily available. Custom prints (grids, company name, logo, etc) can be created upon request.

For device unloading applications that require use of a manual vacuum pick-up tool or automated Pick & Place equipment, please refer to the Vacuum Release (VR) products.

Gel-Slide Tack Levels:

EH, EH07 and FE70 tack levels are static dissipative.
