VTX 2” Pocketless Tray for Manual Device Handling Applications

Gel-Pak’s VTX pocketless device carrier for manual device handling applications provides superior protection over traditional pocketed waffle pack / chip trays. Based on our proprietary Vertec® material, this bio-inspired carrier uses the adhesive properties of a texturized elastomer material.

  • Universal carrier that holds devices in place without need for custom molded pockets
  • No contact with top or edges of device
  • Designed for manual loading and unloading (i.e. tweezers). Not to be use with vacuum pick-up tip or static PenVac
  • Compatible with device sizes 700µm to 5mm
  • No die migration or spillage
  • No vacuum required
  • Ideal for semiconductor IC’s or optical components

VTX Configuration:

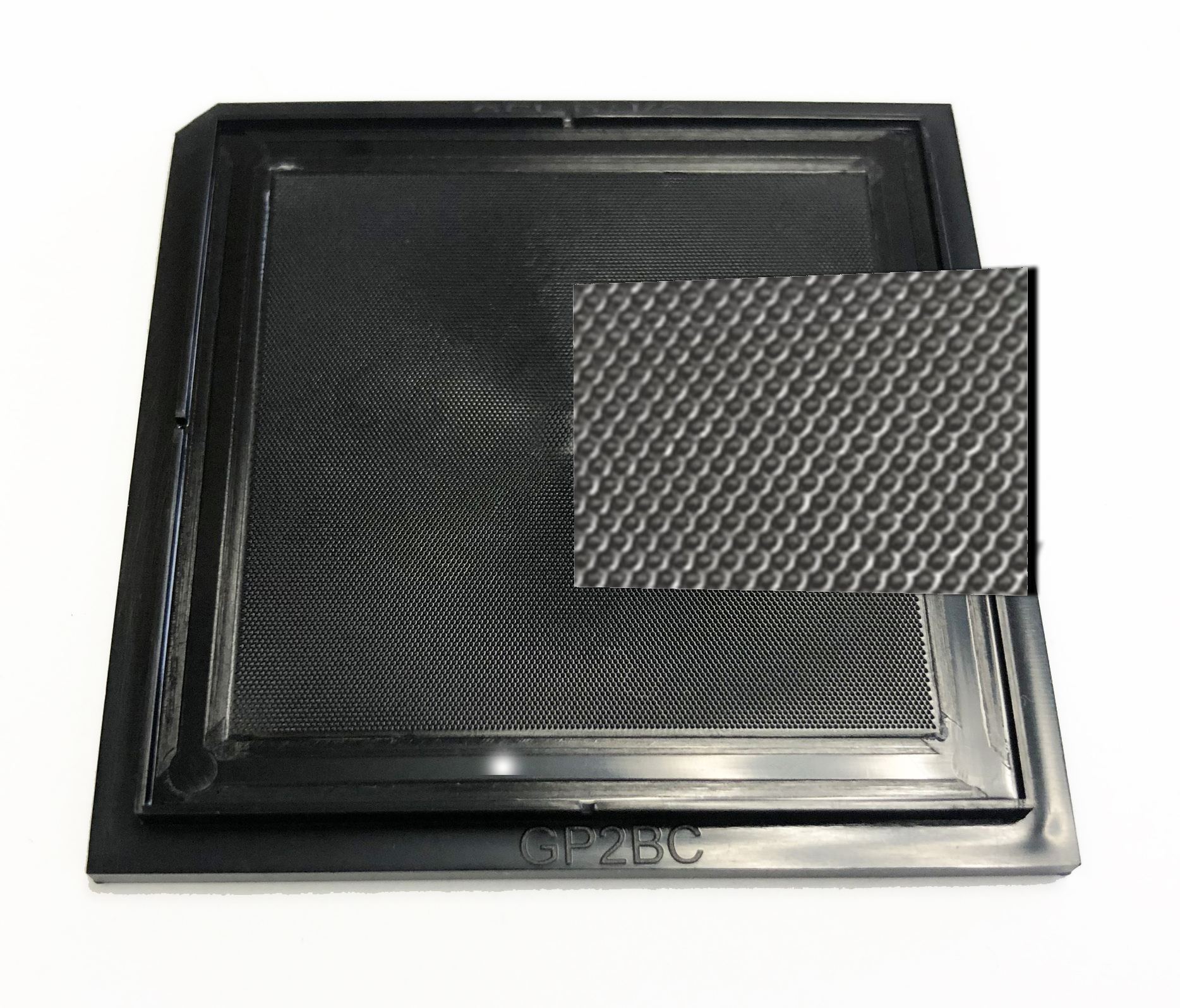

  • 2” x 2” polycarbonate molded tray with a textured, non-silicone Vertec elastomer surface
  • Recommended VTX product “100-H” for manual handling
  • Available in variety of lid/hinged box material configurations:
    • Transparent
    • Conductive Black
    • Transparent Antistatic
  • Operating temperature +10 to +35° C
