Gel-Pak Polyurethane VRP Series Vacuum Release Carrier

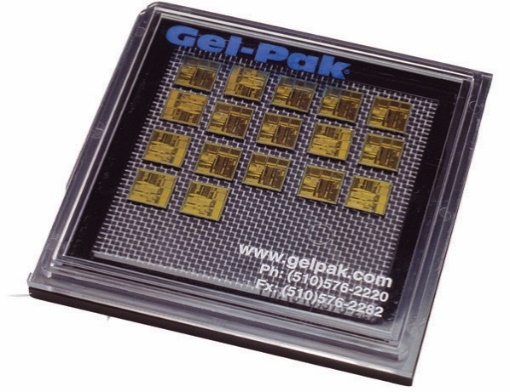

Gel-Pak’s new VRP product line consists of a proprietary cross-linked polyurethane film membrane over a mesh material that holds components in place until they are released “on-demand” by applying vacuum to the underside of the tray. The new polyurethane Vertec® vacuum release tray provides the same appearance and functionality as the traditional Gel VR Tray, yet is both silicone-free and static dissipative.
- Designed to handle components from 250 µm to 300 mm
- Immobilizes and protects valuable devices during shipping and handling
- Ideal for high-volume automated device pick and place applications
- Available in 2” & 4” trays, large format, and custom plate sizes
Material | Attribute |
Elastomer Chemistry | Proprietary Cross-linked Polyurethane Film |
Surface Tack | EH02 (Low Tack) EH07 (High Tack) TBD |
Surface Resistance | <109 ohms |
Operating Temperature | +10 to +35° C |
Shipping/Storage Temperature | -10 to +75° C |
Shelf Life | 2 Years |
Unique Features | Static Dissipative, Non-Silicone |
